600Pcs Waterproof Heat Shrink Butt Wire Connectors Crimp Terminals 22-10 Gauge

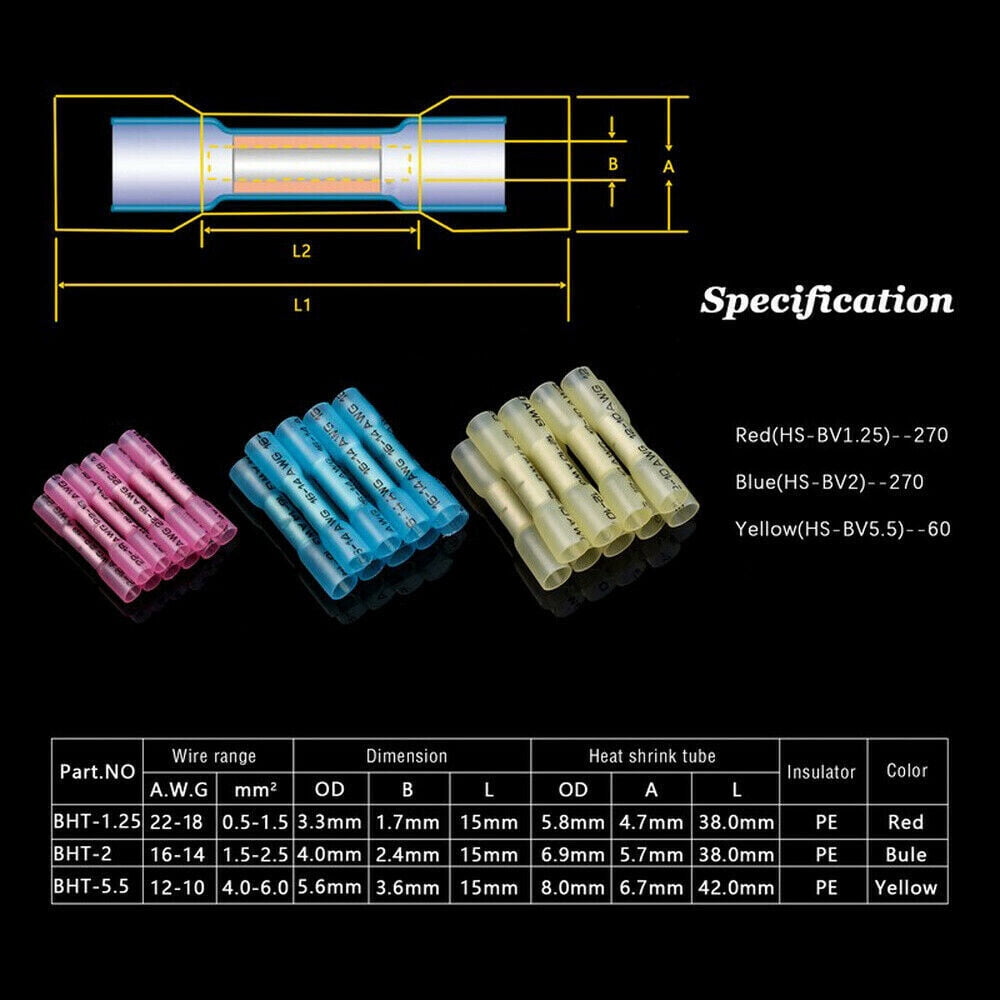

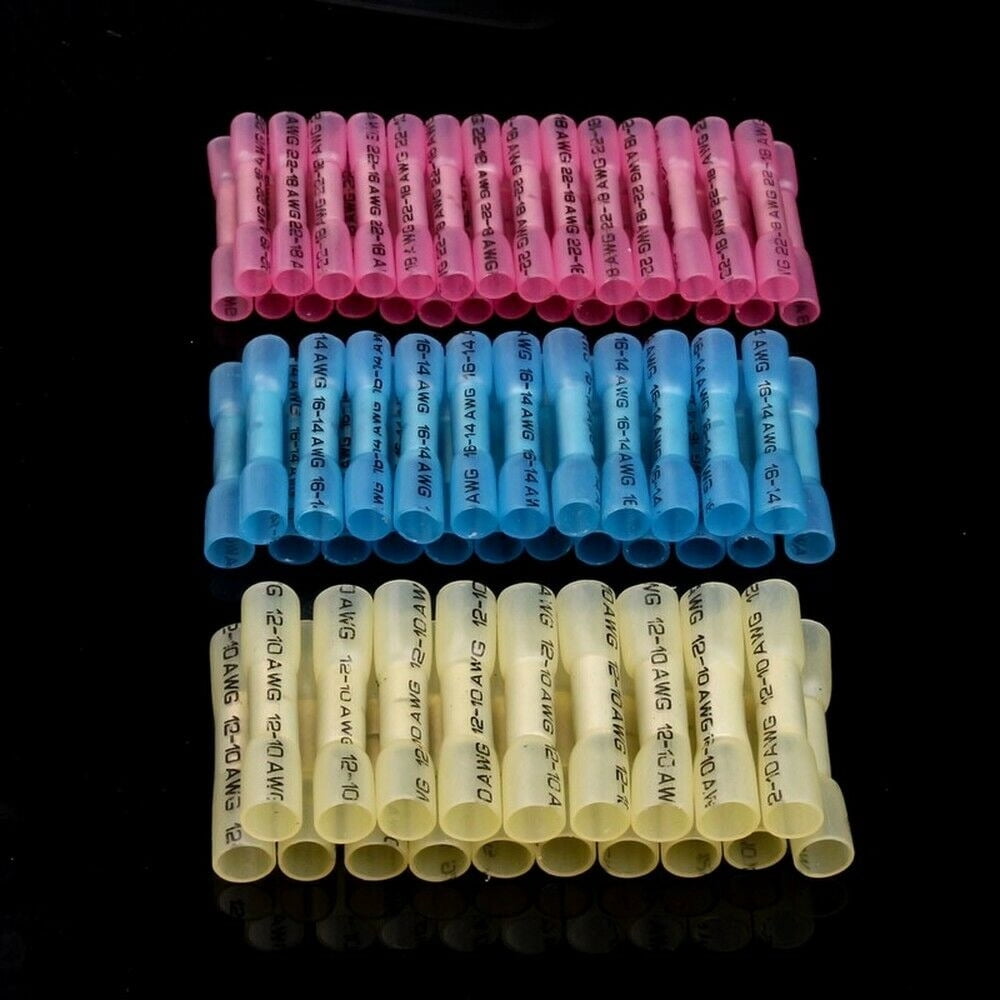

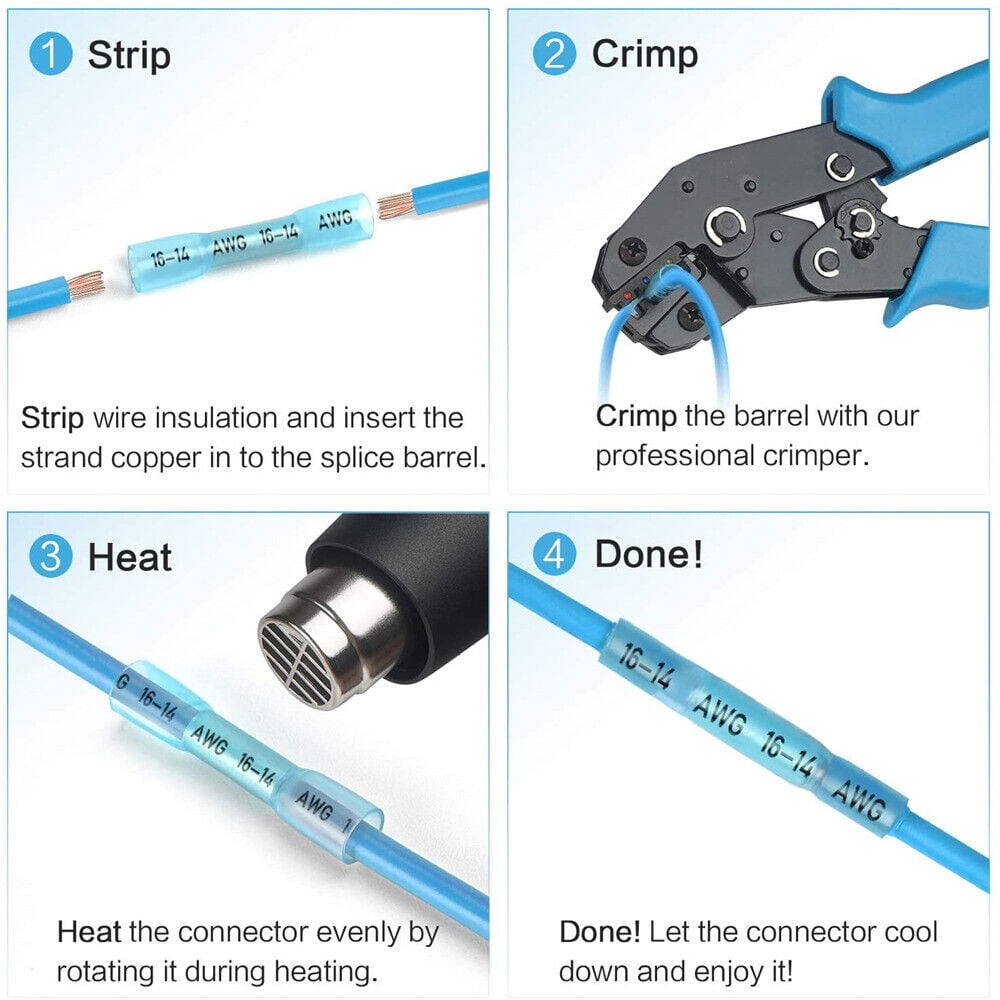

600Pcs Waterproof Heat Shrink Butt Wire Connectors Crimp Terminals 22-10 Gauge<br>Description<br><br>100% Brand New and High Quality.<br><br>Shape/Colour: Same as the picture show<br><br><br><br>600PCS AWG Heat Shrink Crimp Butt Electrical Wire Splice Terminal Connectors Kits<br><br>Specification:<br><br>1. Quantity: 600PCS<br><br>2. Type: Heat-Shrinkable Waterproof Butt Connectors<br><br>3. Insulation Sheath Material: Nylon PE Tube<br><br>4. Conductive Bar Material: Copper<br><br>5. Current Ranges: 19A - 48A<br><br>6. Useable Wire Range: 0.5-6mm² (Both hard and soft wires are available)<br><br>7. Product Features: Waterproof, Electricity Leakage Protector, Durable<br><br>8. Size:<br><br>Red Connectors: AWG 22-16 fit Wire/Cable 0.5-1.5mm²: 270PCS<br><br>Blue Connectors: AWG 16-14 fit Wire/Cable 1.5-2.5mm²: 270PCS<br><br>Yellow Connectors: AWG 12-10 fit Wire/Cable 4.0-6.0mm²: 60PCS<br><br><br><br>Instructions:<br><br>Step 1: Preparation: Crimping tools, heat shrinkable butt connectors, peeling the head of wire , hot drying gun (can be replaced by a lighter)<br><br>Step 2: Inserting the wire into the heat-shrinkable connectors, then press the middle of the connectors with a crimping tool, or crimping two ends of the connector.<br><br>Step 3: Baking two ends of the connector with a hot baking gun until the connector fully shrunk. (can be replaced by a lighter)<br><br><br><br>Features:<br><br>1. Excellent splice for marine, automotive, outdoor, or harsh, environment use.<br><br>2. Made with heat shrink material, crimp with a true plated copper core.<br><br>3. The translucent heat shrink material allows visual inspection of the connection, and included almost frequently-used connectors' size.<br><br>4. When properly heated and shrunk, they provide a seal that is resistant to water, steam, salt and other contaminants.<br><br>5. Heat shrink insulated connectors will provide improved pullout strength and strain relief.<br><br><br><br>Package Included:<br><br>1x 600PCS Heat-Shrinkable Waterproof Butt Connectors With Plastic Box
