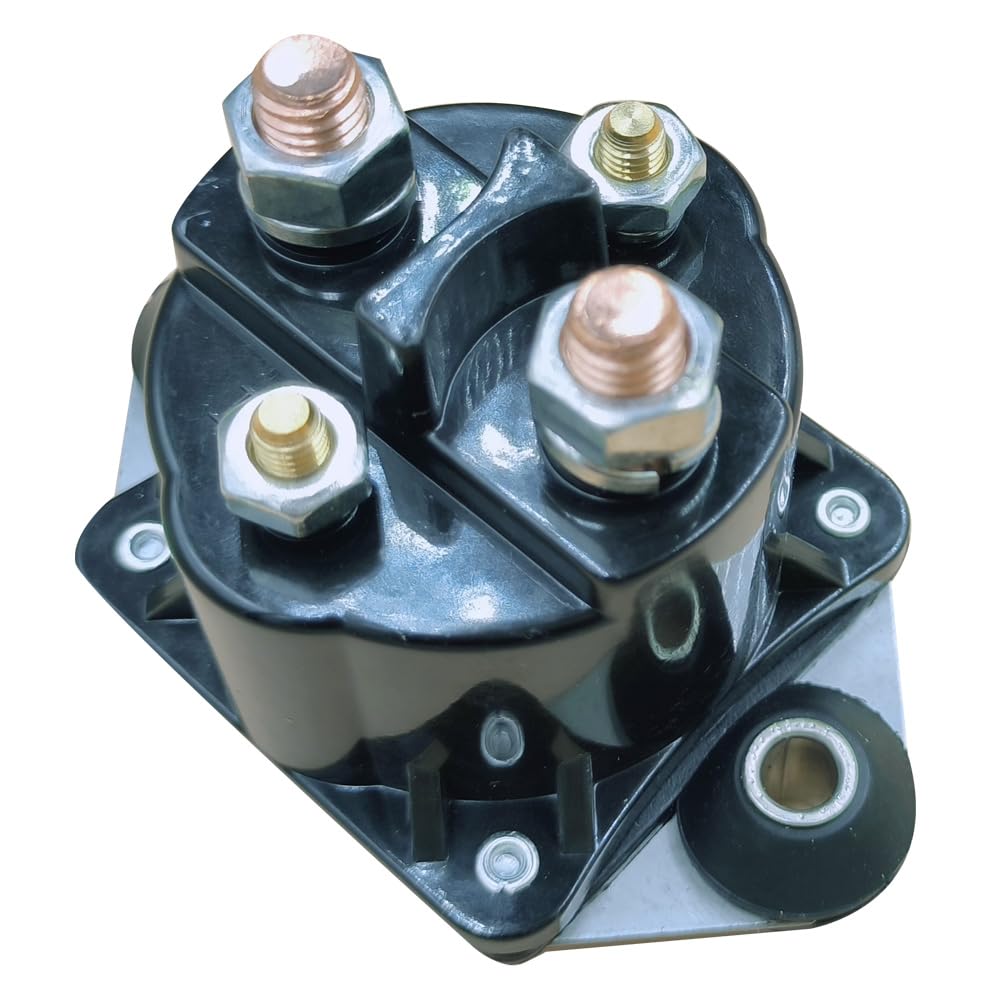

Starter Solenoid Compatible with Force Marine 40 50 75 90 120 96-99 Mercury Marine 75 80 90 100 105 115 V135 V150 V175 V200 V225 V250 by Part Numbers 89-817109A1 89-817109A2 89-817109A3 18-5834
Product details
| Management number | 233897314 | Release Date | 2026/06/27 | List Price | US$7.99 | Model Number | 233897314 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Title Marine Starter Solenoid Relay for Mercury/Force Outboards | Replaces 89-817109A1/A2/A3 18-5834 | 12V 4-Terminal Intermittent Duty Product Description Precision Marine Compatibility: Direct replacement for Mercury Marine: 89-817109A1, 89-817109A2, 89-817109A3 Cross-brand equivalents: Sierra 18-5834, ARCO SW109, WAI 67-731, J&N 240-22131 EMP 4-5834, Arrowhead SMR6010/SMR6020 Military-Grade Construction: MIL-STD-202H vibration certified IP67 waterproof encapsulation Silver-cadmium contacts (0.008Ω resistance) -40°F to 257°F operational range Technical Specifications: Voltage: 12V DC intermittent duty Terminal configuration: - Battery/Motor: 5/16-24 studs - Switch/Ground: 10-32 threads Mounting: 68mm center-center spacing Isolated base design 300A inrush current capacity Engine Coverage: Mercury Marine: 75-250HP (V135-V250) Force Outboards: 40-120HP (1996-1999) Compatible with: - Crusader 22611 - Prestolite 15-457 - Pleasurecraft R130014 Performance Validation: 1000+ cycle load testing SAE J1171 marine ignition protection Salt spray tested (ASTM B117) Dielectric strength: 500V AC/1 minute Installation Note: Verify OEM part number compatibility Torque specs: 18-22 ft-lbs (battery terminals) Requires 8AWG minimum cable gauge
- Mercury 89-817109A3 89-817109A2 89-817109A1 MERCURY MARINE 87-803632T 89-F460917-1 Sierra 18-5834 18-3835 18-5835 Arco SW109 SW295 Arrowhead SMR6010 SMR6020 PL15-457 J&N 240-22131 240-20010 WAI 67-731 EMP Parts 4-5834 4-5835 MARINE 460917-1 CRUSADER 22611 R130014 FORCE 89-F460917-1 PLEASURECRAFT R130014 PRESTOLITE 15-295 15-457
- Replaces: MERCURY MARINE 89-817109A 1, 89-817109A 2 & A 3, SIERRA 18-5834, RUBBER MOUNTING AND 5/16 STARTER STUDS ...
- Mercury Marine 75 80 90 100 105 115 V135 V150 V175 V200 V225 V250 FORCE 40 50 75 90 120
- Computer tested for consistent Quality and unsurpassed reliability
- Solenoid - 12 Volts 4 terminal intermittent duty
| UPC | 770651779463 |
|---|---|
| ASIN | B0CDQ63WH1 |
| Model | 89-817109A1 |
| Brand Name | Polazic |
| Part Number | 817109A1 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | Polazic |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Item Type Name | A solenoid |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | Sae J1171, Ip67, Dielectric Strength: 500v Ac/1 Minute |
| Included Components | A solenoid |
| Warranty Description | One-year warranty |
| Minimum Switching Voltage | 12 Volts (DC) |
